    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO 9001 TS16949
    Model Number: SAE J527 b

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 tons
    Price: 4-6USD/kg
    Packaging Details: In wooden boxes packaging
    Delivery Time: 4-5 week days
    Payment Terms: L/C, T/T
    Supply Ability: 5000 tons per year
    Contact Now
    Detailed Product Description
    Material: 1008 Or 1010 Etc Low Carbon Steel Standard: SAE J527
    OD: 4.76-8.00 Mm WT: 0.7mm
    Length: Straight Length Or Coil Assurance Pressure: 350kg/cm3

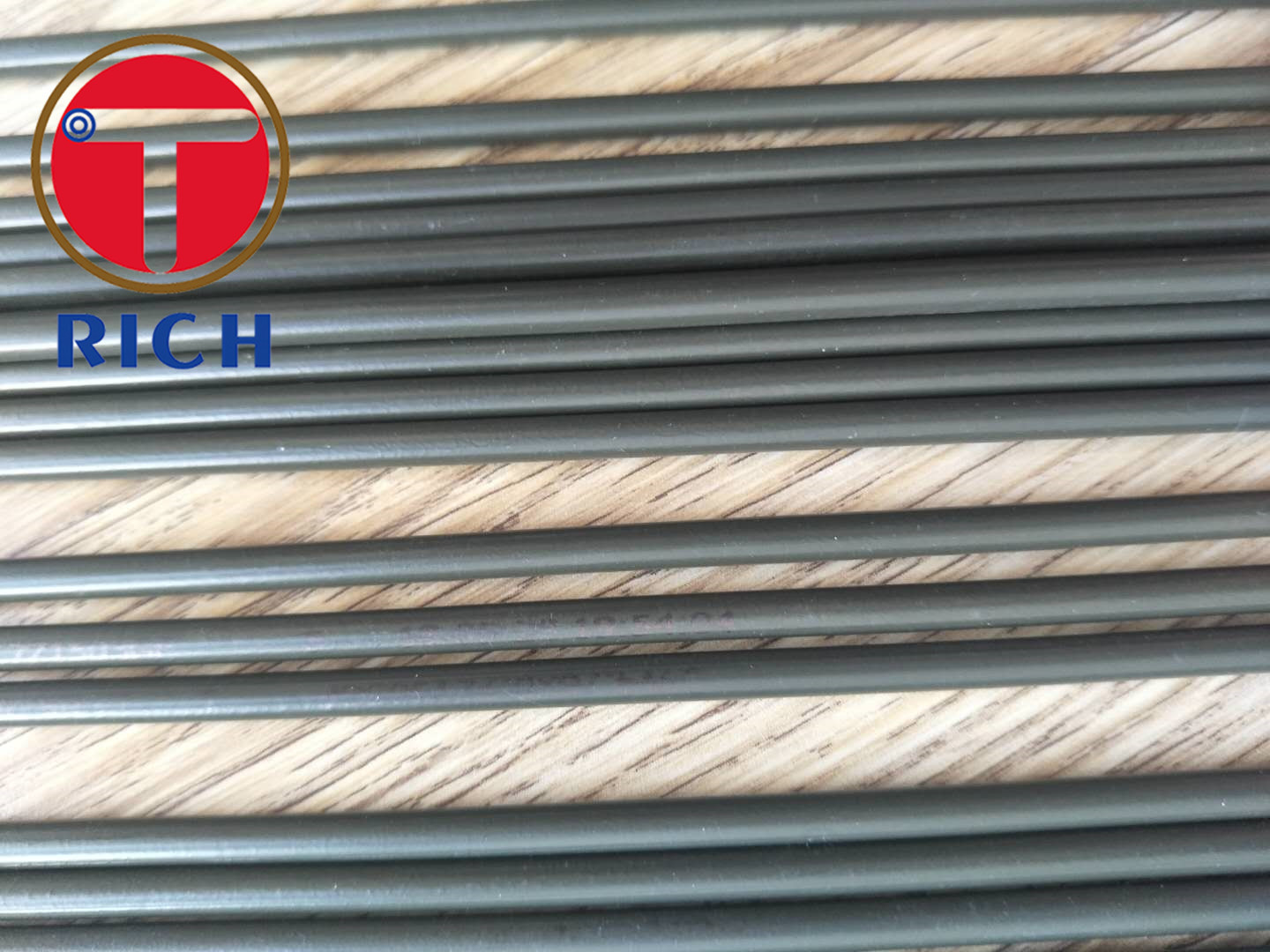

    Brake tubes Double wall steel tubes J527 b small diameter tuing for automobiles



    Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries.



    Dimension and specification



    O.D. mm Thickness mm Weight g/m

    Assurance pressure kg/cm3
    4.76 0.7 70.28 350
    6.00 0.7 91.76 350
    6.35 0.7 97.75 350
    7.00 0.7 108.75 350
    7.14 0.7 111.17 350
    8.00 0.7 126.31 350



    Tolerance

    O.D. and W.T. +/-0.08mm



    Chemical Composition

    C ≤ 0.12%

    Mn ≤ 0.50%

    P≤ 0.04%

    S≤ 0.045%



    Mechanical properties

    Tensile strength ≥30kgf/mm2

    Yield point ≥18kgf/mm2

    Elongation(50mm)≥25%

    Hardness(HR30T)≤ 65



    Expand test Take 3 samples of 200mm,expand the pipe outside dimension to larger than 25%


    Internal cleanliness Particle and oil ＜0.194g/m2
