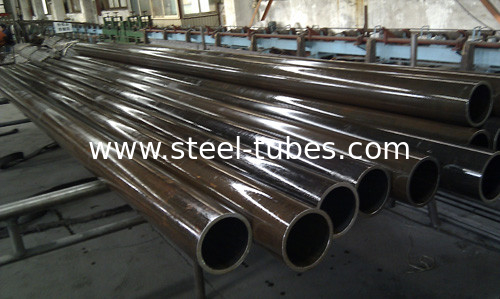

EN10305-2 Hydraulic Steel Tubing for Oil Cylinders

EN10305-2 Hydraulic Steel Tubing for Oil Cylinders

    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders
    • EN10305-2 Hydraulic Steel Tubing for Oil Cylinders

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001,ISO14001,TS16949,DNV
    Model Number: EN10305-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 3-5TONS
    Price: 1200 USD/ton
    Packaging Details: In bundles or cartons
    Delivery Time: 30-60 DAYS AFTER ORDER CONFIRMED
    Payment Terms: T/T, L/C
    Supply Ability: 60000 TONS PER YEAR
    Contact Now
    Detailed Product Description
    Shape: Round Steel Grade: E235 E195 E355 Etc
    Application: Structure Pipe,Hydraulic Pipe,Fluid Pipe,Mechanical Purpose,automotive Pipe Alloy Or Not: Non-alloy
    Technique: Cold Drawn Thickness: 0.8 - 4 Mm
    Standard: DIN Special Pipe: Thick Wall Pipe
    Section Shape: Round Outer Diameter(round): 6 - 350 Mm
    Secondary Or Not: Non-secondary

    EN10305-2 Welded Precision Cold Drawn Steel Tubes



    Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber

    Auto shock absorber innder cylinder/Telescopic Cylinders

    Size range:O.D.:6-280mm     W.T.:1-30mm      L:max12000mm  short length is available.

    Delivery Condition:+Cc +Lcc +SR +Ad +N



    Steel Grade and Chemical Compositions:

    Steel Grade C Si Mn P S
    Steel name Steel number max max max max max
    E155 1.0033  0.11 0.35 0.70  0.025 0.025
    E195 1.0034  0.15 0.35 0.70  0.025 0.025
    E235 1.0308  0.17 0.35 1.20  0.025 0.025
    E275 1.0225  0.21 0.35 1.40  0.025 0.025
    E355 1.0580  0.22 0.35 1.60  0.025 0.025

    Test: Flaring Test  Flange Test Hardness Test Reversed Test 100%Hydrostatic Test or 100% Non-destructive Test



    Mechanical properties at room temperature
    Steel grade Minimum values for the delivery condition
    Steel name (+Cc) (+LCc) (+SR) (+Ad) (+N)
    Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReHe Mpa A %
    E155 1.0033  400 6 350 10 350 245 18 260 28 270-410 155 28
    E195 1.0034  420 6 370 10 370 260 18 290 28 300-440 195 28
    E235 1.0308  490 6 440 10 440 325 14 315 25 340-480 235 25
    E275 1.0225  560 5 510 8 510 375 12 390 21 410-550 275 21
    E355 1.0580  640 4 590 6 590 435 10 450 22 490-630 355 22

     Note: Special steel grade is also available, according to customer request.
