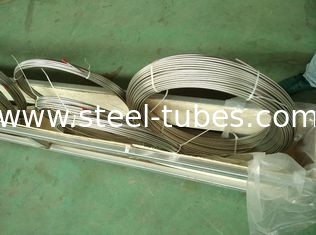

D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1

D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1

D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1

Product Details:

Place of Origin: China
Brand Name: Torich
Certification: ISO9001
Model Number: ASTM A269 EN10216-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Price: 2000-5000USD/ton
Packaging Details: In bundles or in wooden boxes packaging
Delivery Time: 5-8 weekdays
Payment Terms: L/C, T/T
Supply Ability: 50000tons per year
Contact Now
Detailed Product Description
Material: 304 316 Standard: ASTM A269 EN10216-5
Certification: ISO Steel Grade: 300 Series
Application: Industry Type: Seamless And Welded
Thickness: 0.4-30mm Outer Diameter: 6mm-219mm/10mmx10mm
Length: 6m Or As Customers' Request

Tolerance D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1





Standard:ASTM A213 ASTM A269 EN10216-5 TC-1



NDT: Eddy Current or Hydraulic Test or UT



Tolerance: D4/T3



Heat treatment: Bright Annealed



Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon request.



Why choose bright annealed tube?



1.Superior Surface Finish

The traditional annealing :Open furnace---Oxygen atmosphere---form Scale, tarnish the material,For more than 12m tubes this method is hard to clean inner surface.

A special bright annealing:Closed furnace---Insert atmosphere use noble gases(Nitrogen and argon)Preventing Oxygen to contact with material ---Surface finish is clean,bright and precision,which is an excellent starting point for further process,like electro-polishing and mechanical polishing. For more than 12m tubes,this method is much cleaner smoother on both inner and outer surface.



2.Better Mechanical Property

The temperature of furnace can reach more than 1350℃,and the tolerance for setting and real temperature can be controlled within +/-2℃,which is impossible for the traditional annealing.



3.Perfect Inspection Method And Inspection Equipment

100%PMI test

100%Hydraulic test

100%Inner cleaned by sponge

100%Dimension test

100%Surface test

Quality of precision drawn tubing is same to precision rolling.



4.More Precision Dimension

Advanced cold drawn technology from Japan and Korean,Making the close dimension controls.



What kind of coiled tubing we can produce?

unit:mm

OD 4.76 WT 0.51 0.71 0.89 1.24
OD 6 WT 1 1.5
OD 6.35 WT 0.51 0.71 0.89 1.24 1.65
OD 7.94 WT 0.71 0.89 1.24 1.65
OD 9.53 WT 0.71 0.89 1.24 1.65
OD 10 WT 1 1.5 2
OD 12 WT 1 1.5
OD 12.7 WT 0.71 0.89 1.24 1.65
OD 14 WT 1 1.5 2
OD 15.88 WT 0.71 0.89 1.24 1.65 2.11
OD 16 WT 1 1.5 2
OD 19.05 WT 1 1.24 1.65 2.11
OD 25.4 WT 1.24 1.65 2.11 2.54
OD 31.8 WT 1.24 1.65 2.11 2.54
OD 38.1 WT 1.24 1.65 2.11 2.54 3.05



Application:

Instrument Tubing

Chromatography tubing

Hydraulic Tubing

High Pressure Tubing

Cleaned Tubing

Multi Core Tubing



D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1     D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1



D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1     D4 / T3 Bright Annealed Stainless Steel Tubes ASTM A213 ASTM A269 EN10216-5 TC1
