Place of Origin: | China |
Brand Name: | Torich |
Certification: | IS09001 ISO14001 TS16949 |
Model Number: | BS 3059 |
Minimum Order Quantity: | 5tons |
---|---|
Price: | Negotiation |
Packaging Details: | IN BUNDLES |
Delivery Time: | 30-60DAYS |
Payment Terms: | T/T L/C |
Supply Ability: | 50000 TONS PER YEAR |

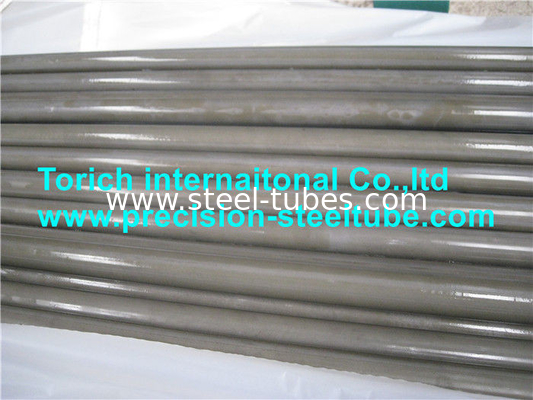

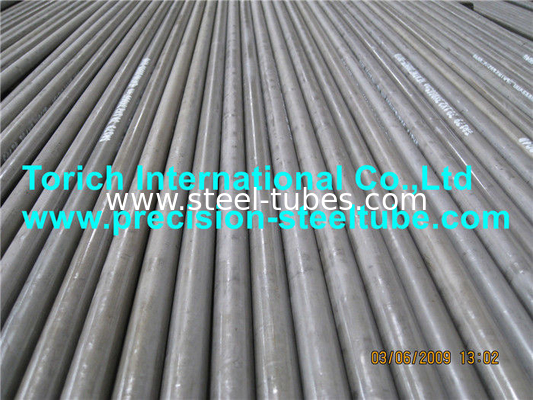

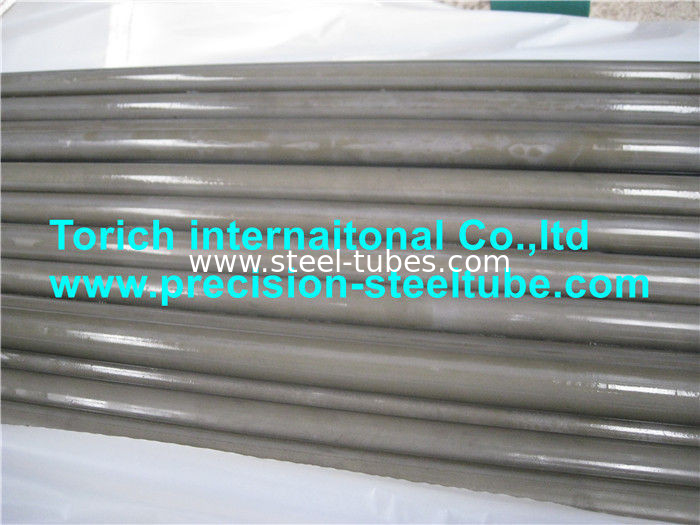

BS 3059 Gr 360 Carbon Steel Heat Exchanger Tubes for Steel Boiler and Superheater Tubes
Product Name:BS 3059 Steel boiler and superheater tubes
Carbon ,alloy and austenitic stainless steel tubes with specified elevated temperature properties
Size
Diameter 5-420mm Wall thickness 0.5-50mm Length Upon request
Application : for boiler and superheater
Produce method: seamless ,welded
Delivery condition: hot finished, cold finished
CHEMICAL COMPOSITION % max |
|||||||||
Steel Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
others |
360 |
0.17 |
0.10-0.35 |
0.40-0.80 |
0.035 |
0.035 |
- |
- |
- |
- |
440 |
0.12-0.18 |
0.10-0.35 |
0.90-1.20 |
0.035 |
0.035 |
- |
- |
- |
- |
243 |
0.12-0.20 |
0.10-0.35 |
0.40-0.80 |
0.035 |
0.035 |
- |
0.25-0.35 |
- |
Al 0.012 |
620-460 |
0.10-0.15 |
0.10-0.35 |
0.4-0.7 |
0.03 |
0.03 |
0.7-1.10 |
0.45-0.65 |
- |
Al 0.020 |
622-490 |
0.08-0.15 |
0.5 |
0.4-0.7 |
0.03 |
0.03 |
2.00-2.50 |
0.90-1.20 |
- |
Al 0.020 |
629-470 |
0.15 |
0.25-1.00 |
0.30-0.60 |
0.03 |
0.03 |
8.00-10.00 |
0.90-1.10 |
- |
Al 0.020 |
629-590 |
|||||||||
762 |
0.17-0.23 |
0.50 |
1.00 |
0.03 |
0.03 |
10.00-12.50 |
0.80-1.20 |
0.30-0.80 |
vanadium 0.25-0.35 |
Note:243,620-460,622-490,629-470,629-590 the following remaind elements shall not exceed Ni,0.30%;Cu ,0.25%;Sn,0.03% |
MECHANICAL PROPERTIES min |
|||
Steel Grade |
Tensile Strength Mpa |
Yeild point or proof stress Mpa |
Elongation % |
360 |
360-500 |
235 |
24 |
440 |
440-580 |
245 |
21 |
243 |
480-630 |
275 |
22 |
620-460 |
460-610 |
180 |
22 |
622-490 |
490-640 |
275 |
20 |
629-470 |
470-620 |
185 |
20 |
629-590 |
590-740 |
400 |
18 |
762 |
720-870 |
470 |
15 |
Delivery condition |
steel grade |
Final supply condition |
Temperature of heat treatment |
360,440(seamless hot finished) |
hot finished |
- |
|
360,440(seamless cold finished) |
normalized |
880-940 |
|
243(all manufacturing condition) |
normalized |
900-960 |
|
622-490(seamless) |
normalized+tempered |
normalized900-960 |
|
629-470(seamless) |
annealed |
850-950 |
|
629-590(seamless) |
normalized+tempered |
normalized900-1000 |
|
762(seamless) |
normalized+tempered |
normalized1020-1070 |
Related knowledge
Boiler steel | |||||||
Material # | EN 10028-2 | DIN 17155 | NFA 36-205 | UNI 5869 | UNE 36087 | ASTM | JIS G3115 |
1.0345 | P235GH | HI | A 37 CP | Fe 360 - 1KW | A 37 RCI | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | SPV 24 |
1.0425 | P265GH | HII | A 42 CP | Fe 410 - 1KW | A 42 RCI | A 414 Gr. E / A 516 Gr. 60 | |
1.0481 | P295GH | 17 Mn 4 | A 48 CP | Fe 460 - 1KW | A 47 RCI | A 414 Gr. F / A 516 Gr. 65 | SPV 32 |
1.0473 | P355GH | 19 Mn 6 | A 52 CP | Fe 510 - 1KW | A 52 RCI | A 414 Gr. G | SPV 36 |
1.5415 | 16Mo3 | 15 Mo 3 | 15 D3 | 15 Mo 3 | 16 Mo 3 | A 204 Gr. B | |
1.7335 | 13CrMo4-5 | 13CrMo 4 4 | 15 CD 4-05 | 14 CrMo 4.5 | 14 CrMo 4.5 | A 387 Gr. 12 | |
1.738 | 10CrMo9-10 | 10CrMo 9 10 | 10 CD 9.10 | A 387 Gr. 22 | |||
1.7383 | 11CrMo9-10 | 12 CrMO 9.10 | 12 CrMo 9.10 |
