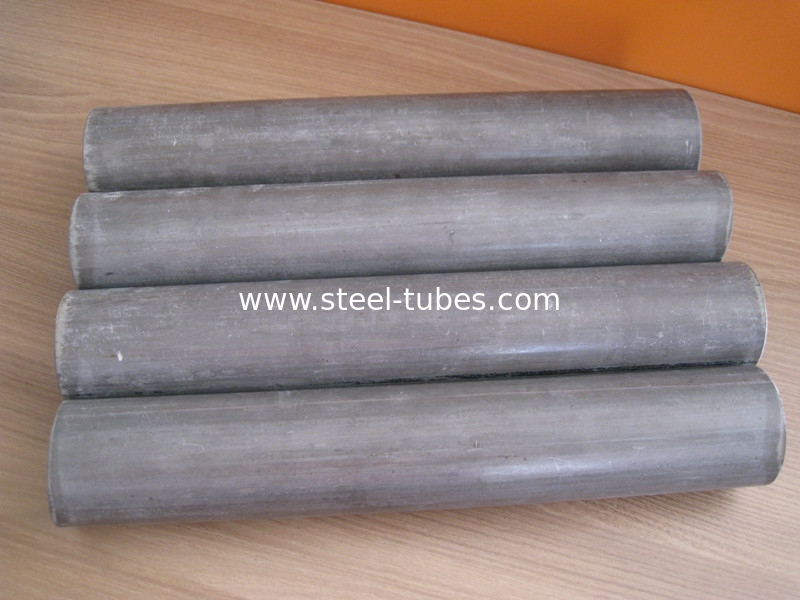

ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade

ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade

    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade
    • ASTM A513 Electric Resistance Welded DOM Steel Tubing with Carbon and Alloy Steel Grade

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001,ISO14001,TS16949
    Model Number: ASTM A513

    Payment & Shipping Terms:

    Price: 1200 USD/TON
    Packaging Details: IN BUNDLES
    Delivery Time: 30-60 DAYS
    Payment Terms: T/T,L/C
    Supply Ability: 50000 TONS PER YEAR
    Min Order: 5 tons
    Shipment: FCL, LCL workable. Bulk Vessel workable By Air, By Sea, by Courier
    Contact Now
    Detailed Product Description
    Thickness: 1-12.5mm Grade: Carbon And Alloy
    Material: Steel Shape: Round
    Application: Structure Pipe Standard: ASTM
    Technique: ERW Surface Treatment: Null
    Alloy Or Not: Non-alloy Section Shape: Round

    Standard: ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing



    Applications: for mechinery, mechanical engineer, automotive parts

    Size range: O.D.:6-320mm     W.T.:1-12.5mm      L:max12000mm



      Steel Grade and Chemical Compositions:
    Steel  Grade C Mn P S Si Cr Mo
    max   max max max min
    1008 0.10  0.5 0.035  0.035
    1010 0.08-0.13 0.30-0.60 0.035  0.035
    1018 0.14-0.20 0.30-0.60 0.035  0.035
    1020 0.17-0.23 0.30-0.60 0.035  0.035
    1026 0.22-0.28 0.60-0.90 0.035  0.035
    1035 0.31-0.38 0.60-0.90 0.035  0.035
    4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
    4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25



    Steel  Grade Yield Ulitmate Elongation RB RB
    Strength Strength % min max
      ksi Mpa ksi Mpa
        As-Welded Tubing
    1008 30     207 42     290 15 50
    1010 32     221 45     310 15 55
    1020 38     262 52     359 12 62
    1026 45     310 62     427 12 68
    1035 50     345 66     455 10 75
    4130 55     379 72     496 10 80
    4140 70     485 90     621 10 85



    Steel  Grade Yield Ulitmate Elongation RB RB
    Strength Strength % min max
      ksi Mpa ksi Mpa
        Sink-Drawn Tubing
    1008 38     262 48     331 8 65
    1010 40     276 50     345 8 65
    1020 50     345 60     414 8 70
    1026 55     379 70     483 7 77
    1035 70     483 80     552 7 82
    4130 50     345 70     483 20 100
    4140 65     448 90     621 20 105



    Steel  Grade Yield Ulitmate Elongation RB RB
    Strength Strength % min max
      ksi Mpa ksi Mpa
        Normalizing Tubing
    1008 23     159 38     262 30   65
    1010 25     172 40     276 30   65
    1020 35     207 50     345 25   75
    1026 40     276 60     414 25   80
    1035 45     310 65     448 20   85



    Steel  Grade Yield Ulitmate Elongation RB RB
    Strength Strength % min max
      ksi Mpa ksi Mpa
        Mandrel-Drawn Tubing
    1008 50     345 60     414 5   73
    1010 50     345 60     414 5   73
    1020 60     414 70     483 5   80
    1026 70     483 80     552 5   85
    1035 80     552 90     621 5   90
    4130 85     586 95     655 5   90
    4140 100    690 110     758 5   90



    Steel  Grade Yield Ulitmate Elongation RB RB
    Strength Strength % min max
      ksi Mpa ksi Mpa
        Mandrel-Drawn Stress-Relieved Tubing
    1008 45     310 55     379 12   68
    1010 45     310 55     379 12   68
    1020 55     379 65    448 10   75
    1026 65     448 75    517 10   80
    1035 75     517 85    586 10   85
    4130 80     552 90     621 10   87
    4140 95     655 105     724 10   90
