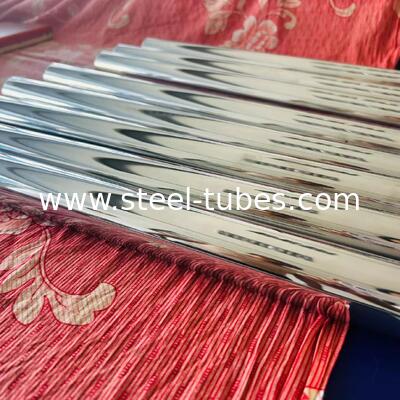

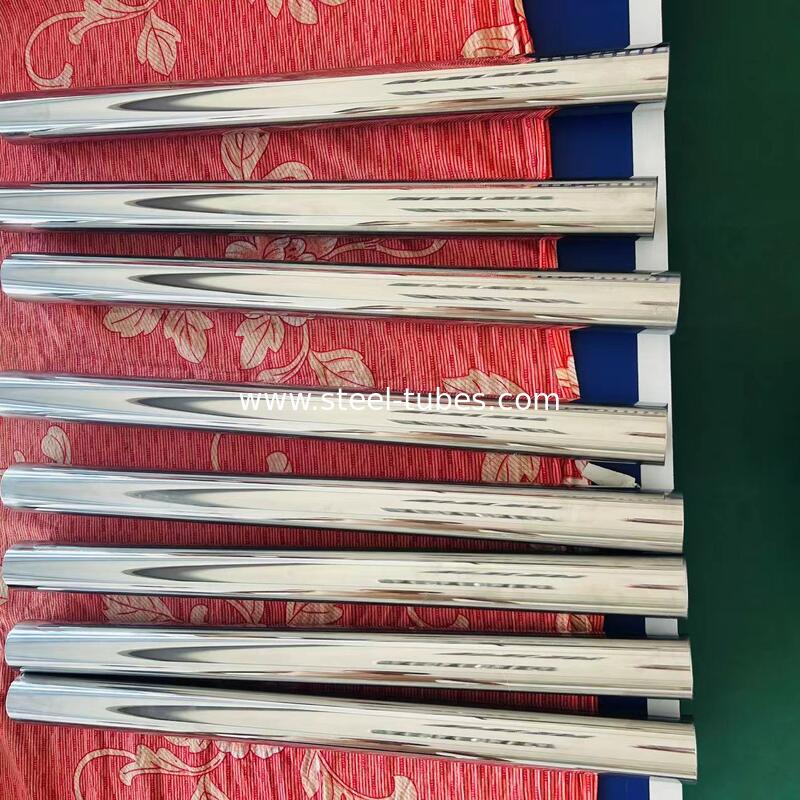

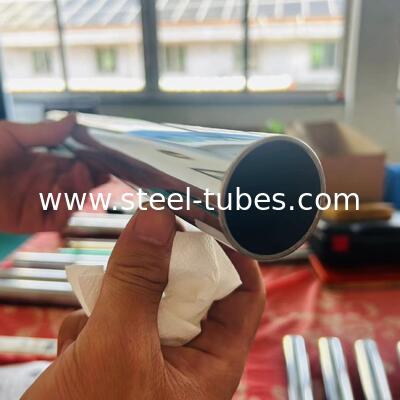

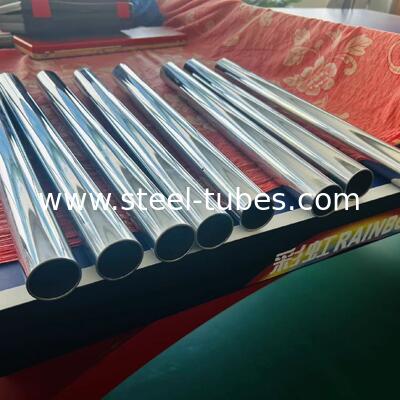

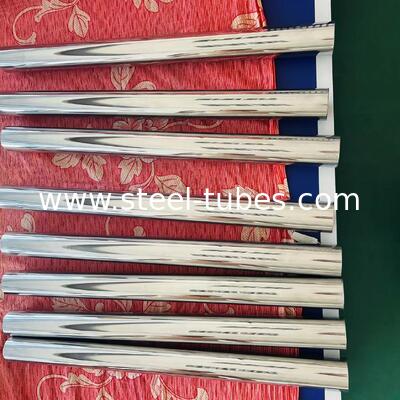

Precision Chrome-Plated Steel Tubes for Forklift Steering Axles

70μm Hard Chrome | 72H NSS Salt Spray Test | Custom Materials & Small-Batch Orders

Overview

Our precision chrome-plated steel tubes are engineered specifically for forklift steering axle applications. Combining high-strength alloy steel cores with advanced hard chrome plating, these tubes deliver exceptional wear resistance, corrosion protection, and long service life under continuous heavy-load operation. Each tube undergoes multi-stage grinding, polishing, and precision machining to ensure accurate fitment and smooth steering performance.

Materials

We select materials based on specific application and performance requirements:

• AISI 1045 / 45# Steel — Medium carbon steel offering a good balance of strength, toughness, and machinability.

• AISI 1020 — Low carbon steel with excellent machinability and weldability, suitable for case-hardening applications.

• AISI4140 (42CrMo Equivalent) — Chromium-molybdenum alloy steel with superior strength, toughness, and wear resistance. Ideal for heavy-load components.

• AISI413 (30CrMo Equivalent) — Chromium-molybdenum steel providing high hardenability and strength for demanding applications.

• 37Mn — Manganese steel offering good comprehensive mechanical properties.

• 45MnPb (Y45MnSPb) — Leaded free-cutting structural steel with excellent machinability.

Hard Chrome Plating

• Chrome Layer Thickness: Up to 70μm hard chrome for maximum wear resistance and extended service life

• Salt Spray Test: Passes 72-hour NSS (Neutral Salt Spray) test, ensuring reliable corrosion protection in humid, outdoor, and harsh environments

• Surface Hardness: High micro-hardness chrome layer significantly improves resistance to abrasion, scratching, and impact

Colors & Surface Finishes

• Colors Available: Gold, Silver, Colored, Natural/Original

• Surface Treatments: Hard Chrome Plating, Zinc Plating, Polishing, and other finishes upon request

Manufacturing Process

• Multi-stage Grinding — Ensures precise dimensional tolerances and smooth surface finish

• Polishing — Delivers a refined surface quality for both appearance and performance

• Precision Machining — CNC machining for accurate fitment and concentricity

Heat Treatment

• Quenching & Tempering — Provides an optimal combination of strength and toughness

• Hardening — Increases surface hardness and wear resistance where required

Key Features

• 70μm hard chrome plating for superior wear and corrosion resistance

• 72H NSS salt spray test passed for long-lasting protection

• High-strength alloy steel construction for reliable load-bearing capacity

• Precision-machined surfaces for smooth steering response

• Multi-stage grinding and polishing for extended service life

• Multiple surface treatment and color options available

• Custom manufacturing available for small batch orders

Applications

Suitable for forklift steering axles, hydraulic cylinders, and other precision shaft applications requiring high wear resistance and corrosion protection. Ideal for warehouses, ports, logistics centers, manufacturing plants, and cold storage facilities.

Dimensional Specifications

Note: d1 tolerance: +0.05/+0.02 mm; d2 tolerance: +0.01/-0.02 mm. Custom sizes available upon request.

Packaging

• Paper wrap + Wooden Case

• Bubble Bag + Wooden Case

• Custom packaging per customer requirements

Customization

Small batch and customized orders are welcome. Please provide drawings or specifications for tailored production.
