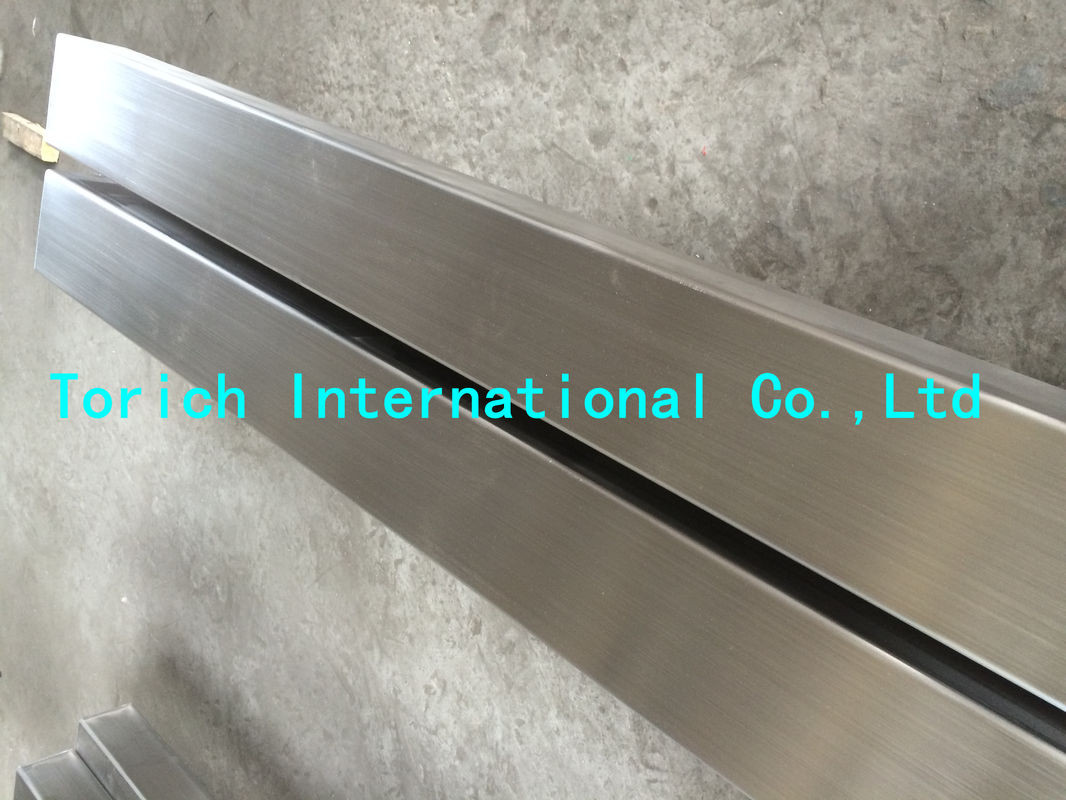

Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing

Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing

    • Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing
    • Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing
    • Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: IS09001 ISO14001 TS16949

    Payment & Shipping Terms:

    Minimum Order Quantity: 5tons
    Price: Negotiation
    Packaging Details: IN BUNDLES
    Delivery Time: 30-60DAYS
    Payment Terms: T/T L/C
    Supply Ability: 50000 TONS PER YEAR
    Contact Now
    Detailed Product Description

    SUS 304 JIS G 3459 weld and seamless Austenitic Stainless Steel Pipes for pressure purpose



    Wall thickness :0.5-50mm

    Diameter: 5-420mm

    Length:Upon request



    Grade:

    SUS304TP , SUS304HTP , SUS304LTP,

    SUS310TP , SUS310STP,

    SUS316TP , SUS316HTP, SUS316LTP , SUS316TiTP,

    SUS317TP , SUS317LTP,

    SUS347TP , SUS347LTP





    Application:

    for pressure purpose,for low temperature service,high temperature service



    Produce method:

    • Arc welding ,
    • Seamless laser welding
    • ERW(electric resistance welding)

    Heat treatment:

    1. rapid cooling
    2. cold finished
    3. hot finished
    4. annealing
    5. air cooling
    6. slow cooling



    CHEMICAL COMPOSITION   % max

    steel grade

    chemical composition

    　

    C

    Si

    Mn

    P

    S

    Ni

    Cr

    Mo

    others

    SUS304TP

    0.080

    1.00

    2.00

    0.045

    0.030

    8.00-11.00

    18.00-20.00

    -

    -

    SUS304HTP

    0.04-0.10

    0.75

    2.00

    0.040

    0.030

    8.00-11.00

    18.00-20.00

    -

    -

    SUS304LTP

    0.030

    1.00

    2.00

    0.045

    0.030

    9.00-13.00

    18.00-20.00

    -

    -

    SUS310TP

    0.150

    1.50

    2.00

    0.040

    0.030

    19.00-22.00

    24.00-26.00

    -

    -

    SUS310STP

    0.080

    1.50

    2.00

    0.045

    0.030

    19.00-22.00

    24.00-26.00

    -

    -

    SUS316TP

    0.080

    1.000

    2.00

    0.045

    0.030

    10.00-14.00

    16.00-18.00

    2.00-3.00

    -

    SUS316HTP

    0.04-0.10

    0.750

    2.00

    0.030

    0.030

    11.00-14.00

    16.00-18.00

    2.00-3.00

    -

    SUS316LTP

    0.030

    1.00

    2.00

    0.045

    0.030

    12.00-16.00

    16.00-18.00

    2.00-3.00

    -

    SUS316TiTP

    0.080

    1.00

    2.00

    0.045

    0.030

    10.00-14.00

    16.00-18.00

    2.00-3.00

    Ti5*C% min

    SUS317TP

    0.080

    1.00

    2.00

    0.045

    0.030

    11.00-15.00

    18.00-20.00

    3.00-4.00

    -

    SUS317LTP

    0.030

    1.00

    2.00

    0.045

    0.030

    11.00-15.00

    18.00-20.00

    3.00-4.00

    -

    SUS347TP

    0.080

    1.00

    2.00

    0.045

    0.030

    9.00-13.00

    17.00-19.00

    -

    Nb 10*C% min

    SUS347LTP

    0.04-0.10

    1.00

    2.00

    0.030

    0.030

    9.00-13.00

    17.00-20.00

    -

    Nb 8*C%-1.00



    MECHANICAL PROPERTIES min

    Steel grade

    Tensile strength Mpa

    Yeild point or proof stress Mpa

    Elongation %

    SUS304TP

    520

    205

    35

    SUS304HTP

    520

    205

    35

    SUS304LTP

    480

    175

    35

    SUS310TP

    520

    205

    35

    SUS310STP

    520

    205

    35

    SUS316TP

    520

    205

    35

    SUS316HTP

    520

    205

    35

    SUS316LTP

    480

    175

    35

    SUS316TiTP

    520

    205

    35

    SUS317TP

    520

    205

    35

    SUS317LTP

    480

    175

    35

    SUS347TP

    520

    205

    35

    SUS347HTP

    520

    205

    35







     Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel TubingSeamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing  Seamless Submerged Arc Welded Pipe , Hot Finished Thin Wall Stainless Steel Tubing
