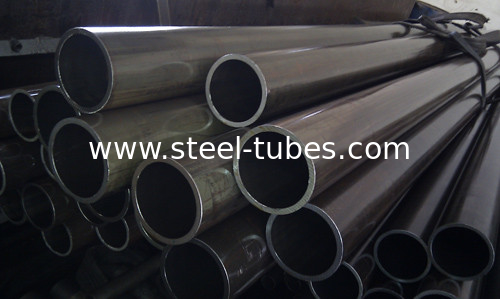

DIN2391 GALVANIZED STEEL TUBES with High Precision for jack lifting systems

Product Details:

Place of Origin:	China
Brand Name:	Torich
Certification:	ISO9001-2000, TS16949
Model Number:	EN10305-1 Precision steel tubes

Payment & Shipping Terms:

Price:	Negotiation
Packaging Details:	Hexagonal Bundles
Delivery Time:	45-60 days
Payment Terms:	T/T, L/C
Supply Ability:	60000 tons annual
Minimum Order Quantity:	5 tons

Contact Now

Detailed Product Description

Application:	Jack Lifting Systems	Shape:	Round

Standard: EN10305-1 Seamless cold drawn/rolling steel tubes

Steel tubes for precision applications,Technical delivery conditions.

Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm

Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber Auto shock absorber innder cylinder/Telescopic Cylinders

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel name	Steel number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties at room temperature
Steel grade		Minimum values for the delivery condition
Steel name	steel nubmer	(+Cc)		(+LCc)		(+SR)			(+Ad)		(+N) NBK
Steel name	steel nubmer	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450f	10	450	22	490-630	355	22

aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
d For calclulation purposes the following relation is recommended:ReH≥0.5Rm                                                   e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimim values are 10Mpa lower than the values given in this Table
f For tubes with outside diameter＞160mm: ReH≥420Mpa
