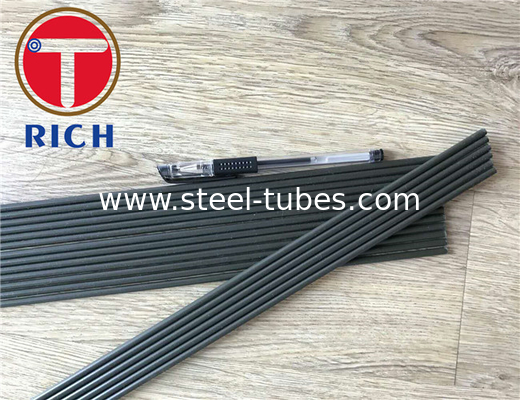

Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94

Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94

    • Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
    • Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
    • Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
    • Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001 TS16949 ISO14001
    Model Number: JASO M101

    Payment & Shipping Terms:

    Minimum Order Quantity: 3tons
    Price: 4000-5000USD/ton
    Packaging Details: In wooden boxes packaging
    Delivery Time: 5-8weeks days
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Material: Low Carbon Steel Type: TSW
    Standard: JASO M101 Packages: In Wooden Boxes Packages
    Coating: As Per Requests Application: Automotive Brake

    JASO M 101-94 Metal pipes for automobile tubing



    TDW Brazed double wall low carbon steel tubing Tubing mainly for brakes



    TSW Welded low carbon steel tubing Tubing mainly for fuel and lubrication



    STKM 11J Carbon steel tubes for machine Structural purpose Tubing for cooling etc.



    C1201 or C1220 Tubing mainly fpr air brakes



    Tolerance :

    Outside Dia: Nominal +/-0.1mm

    Wall thickness: Nominal +/-0.1mm



    Appearance : No harmful defect



    Chemical Composition:

    C Mn P S
    0.12Max 0.50Max 0.04Max 0.045Max



    Mechanical properties

    T.S. Y.P. E.L HR30T
    30kg/mm2min 18kg/mm2min 25%min 65Max



    Corrosion Resistance (Hours)

      Zn8μm Zn13μm Zn25μm Zn+PVF
    White 72 72 72 -
    Red 192 288 480 3000



    Pressure Proof Test(kg/mm2)

      DW SW
    Under 8 350 250
    8.00-10.0 250 200


    Flattening&Bending Test

    DW No crack

    SW Not mentioned.



    Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94 Double / Single Wall Precision Steel Tube For Automobile JASO M 101-94
