DZ60 DZ50 1541G105 S135 Thread Types Coupling Drill pipe
Torich is a manufacturer of Thread Types Coupling Manufacturers Range 3 Length HQ NQ BQ API Steel Grade
G105 S135 Water Well Drill Steel Pipe for over 20 years.
Specifications: Drill Pipes for Oil and Mineral Mining
Applications: For Geological Drill underground for Oil and Mineral, for Mining Exploration
Straightness, Concentricity, Mechanical Properties can meet the requirement of DCDMA (USA), BS4019 (UK), METRIC (SWEDEN)
Size range: O.D.:6-95mm W.T.:1-10mm L:max12000mm
| Standard |
Producton Method |
Tube Size |
Tolerance |
| GB/T 9808-2008 |
Hot rolled |
OD |
(+1.0%OD) +0.65 / (-0.5%OD) -0.35 |
WT≤10
WT>10 |
(+15%WT) +0.45 / (-10%WT) -0.35
(+12.5%WT, -10%WT) |
| Cold Drawn |
OD |
±0.50%OD or ±0.20 |
| WT |
±8%WT or ±0.15 |
| Q(N)/ T118-2010 |
Cold Drawn |
OD |
±0.40%OD or ±0.20 |
| WT |
±7%WT or ±0.15 |
| Designation |
Outside Diameter (mm) |
Inside Diameter (mm) |
| Min |
Max |
Min |
Max |
| A Wireline |
44.45 |
44.70 |
34.82 |
35.07 |
| B Wireline |
55.55 |
55.90 |
45.95 |
46.30 |
| N Wireline |
69.95 |
70.30 |
60.05 |
60.30 |
| H Wireline |
88.90 |
89.38 |
77.62 |
78.10 |
| P Wireline |
114.30 |
114.78 |
102.79 |
103.27 |
| Chemical composition |
| Stee Grade |
C |
Si |
Mn |
P
max |
S
max |
Cu
max |
Cr |
Mo |
B |
T600
(45MnMoB) |
0.43-0.48 |
0.17-0.37 |
1.05-1.35 |
0.02 |
0.015 |
0.20 |
~ |
0.20-0.25 |
0.001- 0.005 |
T750
(30CrMnSiA) |
0.28-0.34 |
0.90-1.20 |
0.80-1.10 |
0.02 |
0.015 |
0.20 |
0.8-1.1 |
~ |
~ |
T850
4140 |
0.38-0.43 |
0.17-0.35 |
0.70-0.90 |
0.02 |
0.015 |
0.20 |
0.9-1.1 |
0.15-0.25 |
~ |
| Mechanical Properties |
| Stee Grade |
Tensile Strength
Mpa min |
Yield Strength
Mpa min |
Elongation
% min |
HRC |
Tensile Strength
Mpa min |
| T600 |
790 |
600 |
14 |
~ |
|
| T750 |
850 |
750 |
14 |
26-31 |
QT |
| T850 |
950 |
850 |
14 |
28-33 |
QT |
| Mechanical Properties |
| Stee Grade |
Tensile Strength
Mpa min |
Yield Strength
Mpa min |
Elongation
% min |
Tensile Strength
Mpa min |
| ZT380 |
640 |
380 |
14 |
Normlized |
| ZT490 |
690 |
490 |
12 |
Normlized |
| ZT540 |
740 |
590 |
12 |
Normlized |
| ZT590 |
770 |
590 |
12 |
Normlized |
| ZT640 |
790 |
640 |
12 |
QT |
| ZT740 |
840 |
740 |
10 |
QT |
| T850 |
950 |
850 |
15 |
QT |

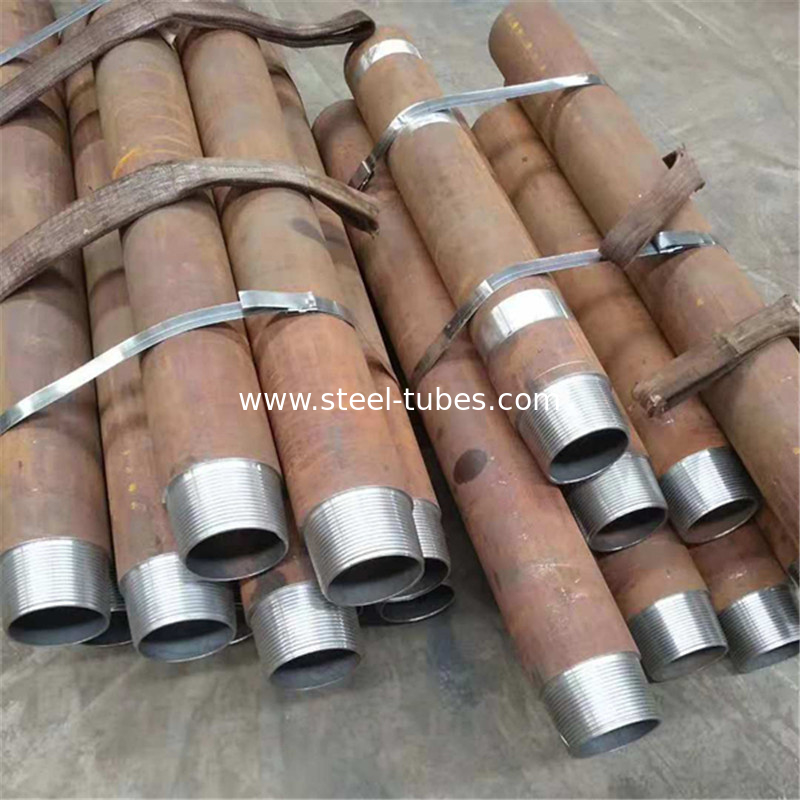

Product Show
QUALITY CONTROL:
1.Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation,
Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before
shippment.
If you have another question, pls feel free to contact us
