SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger

SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger

    • SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
    • SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
    • SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
    • SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
  • SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001,ISO14001,TS16949,KR,LR
    Model Number: ASTM A192

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 tons
    Price: 1200 USD/TON
    Packaging Details: IN WOODEN BOXES
    Delivery Time: 30-60 DAYS
    Payment Terms: T/T,L/C
    Supply Ability: 50000 TONS PER YEAR
    Min Order: 5 tons
    Contact Now
    Detailed Product Description
    Shape: Round U Shaped Application: Boiler Pipe
    Technique: Cold Drawn Thickness: 0.6 - 50.0 Mm
    Standard: ASTM Alloy Or Not: Non-alloy
    Section Shape: Round

    SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger



    Origin China
    Brand name Torich
    Certificate ISO9001 TS16949
    Material Carbon steel Stainless steel
    Product name SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
    Capacity U bending





    Basic introduction

    Production method:Cold drawing and Bending

    Material of U Bend Tube:

    Carbon steel:SA179,SA192,SA334 Gr3 Gr6,SA178 GrA ,A210 Gr1 etc

    Stainless steel:SA213 TP304, TP304L, TP316, TP316L, T5, T9, T11, T22, etc.

    Size :

    OD :6.0-60.3mm

    WT:0.6-6.0mm

    Shape of U Bend Tube:Round and U shape.

    Application: Heat exchanger.

    Quality requirement:MTC EN 10204.3.1 or 3.2

    Bending radii 1.25 x OD up to 1700mm



    Production Description



    What we can do :

    Additional Testing:

    PMI testing

    Heat treatment

    Measuring ,Cutting,Deburring and Cleaning



    Heat treatment of the bend
    U-bends with a bending radius up to maximum of 1500mm can be heat treated on request





    Grade(UNS): Austenitic Stainless Steel:
    304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S(1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550);

    Duplex Stainless Steel:
    S32001, S32003, S31500, 2205(1.4462); S32304,(1.4362);S31803,2507 (S32750),S32760(1.4501);S32101(1.4162);

    Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo (S31254, N08367)

    Nickel Base Alloys:
    Alloy 20 (UNS N08020), Monel 200 (UNS 02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825 (UNS N08825),Inconel 600 (UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276)

    Martensitic Stainless Steel:410(1.4006), 410S(1.4000), 420(1.4021)

    Ferritic Stainless Steel:405(1.4002), 430(1.4016)

    Outside Diameter: 6 - 830mm
    Wall Thickness: 0.50 - 60mm
    Standards(Norm): EN 10216-5; DIN 17456, DIN 17458, DIN 2462, DIN 17455
      GB/T14975; T14976; T13296; GB5310;
      ASTM A213, A269, A312, A511, A789, A790, A928, A999, A1016, ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM B338, ASTM B407, ASTM B423, ASTM B444,ASTM B619, ASTM B622, ASTM B626, ASTM B668, ASTM B677, ASTM B829
      JIS G3459, JIS G3463, JIS G3446, JIS G3447, JIS G3448, JIS G3468
      GOST 9940;GOST 9941;



    Application:
    Exchanger
    SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger



    Feature:

    1.Quick delivery time

    2.High previous

    3.Good Mechanical Properties

    4.100%HT,ECT testing

    5.Third party inspection is available.

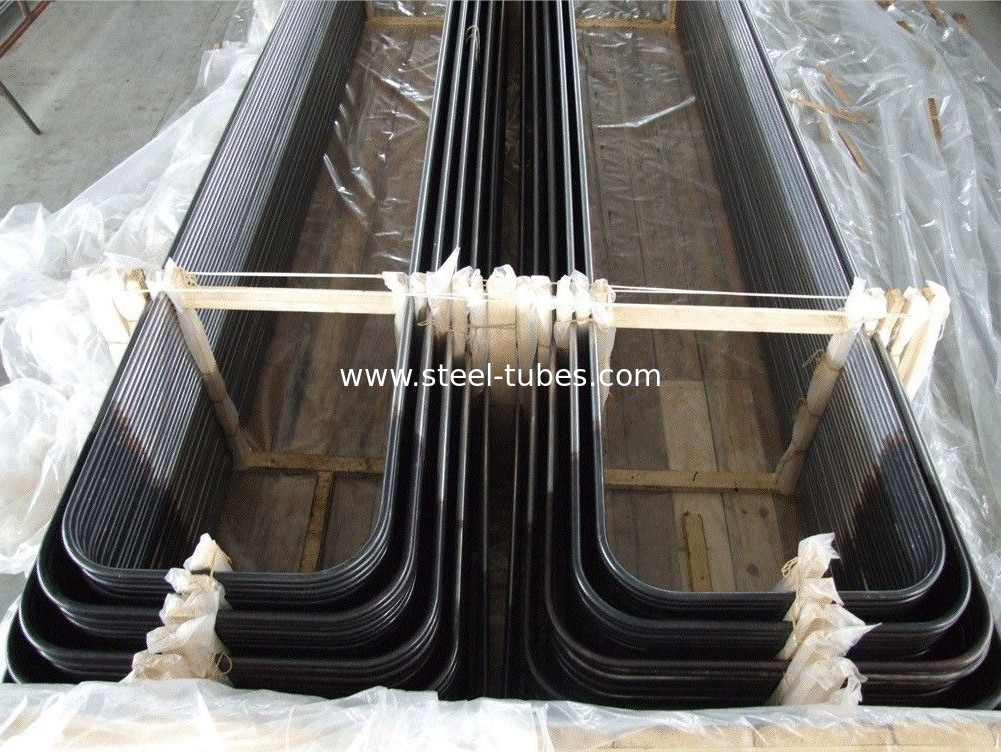

    Product show:

    SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger

    SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger









    Packaging:Woven bags,Wooden cases or according to client’s requirements

    Shipping: Land transportation/Ocean transportation



    Equipments:

    SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger SA-556 Grade C2 U Bend Tube/Bent Tube Heat Exchanger
