    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001,ISO14001,TS16949
    Model Number: Carbon Steel Grade

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 TONS
    Price: 1200 USD/TON
    Packaging Details: IN BUNDLES
    Delivery Time: 30-60 DAYS
    Payment Terms: T/T,L/C
    Supply Ability: 50000 TONS PER YEAR
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Thickness: 0.6 - 50.0 Mm
    Standard: ASTM Alloy Or Not: Non-alloy
    Section Shape: Round Standard2: ASTM A179-1990
    Surface Treatment: Oil Secondary Or Not: Non-secondary

    ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes



    Quick detail :

    Origin China
    Brand name Torich
    Certificate ISO9001 TS16949
    Material ASTM A179 ASME SA179 SA192 ST52.3 St37..4 etc
    Product name ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes
    Capacity Bending





    Basic introduction

    Size of sa 179 Heat Exchanger/Condenser Tubes:OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)

    Production method of ASTM A179 Heat Exchanger Tubing:Cold drawing

    Material :

    ASTM A179 ASME SA179 SA192 ST52.3 St37..4 etc

    Shape :Round Omega etc

    ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes



    Production Description

    ASTM A179 / ASME SA179 SA 192 Chemical composition as below:

    Steel Grade and Chemical Compositions:

    C 0.06-0.18
    Mn 0.27-0.63
    P ≤0.035
    S ≤0.035
    Si ≤0.25

    ASTM A179 / ASME SA179​ SA192 Exchanger steel tubes Mechanical Properties
    Tensil Streghth: min ksi[Mpa] 47[325]
    Yield Point: min ksi[Mpa] 26[180]
    Elongation: ≥35%



    Application:
    Seamless steel tubes as per standard SA179 used for boiler and exchanger

    Boiler

    Pressure Vessel

    Economizer

    Superheater

    Heat-Exchanger

    Condenser





    Feature:

    1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
    2.100% Dimension & Visual Examination
    3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
    4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
    5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
    6.Straightness Test (optional)
    7.Roughness Test (optional)
    8.Intergranular Corrosion Test(optional)
    9.Impact Test (optional)
    10.Grain Size Determinations (optional)

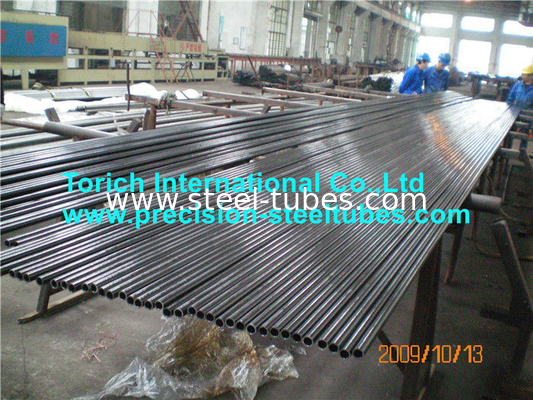

    Product show:



    ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes





    Packaging:Wooden cases or according to client’s requirements

    Shipping: Land transportation/Ocean transportation



    Equipments:

    ASTM A179 / ASME SA179 SA192 Seamless HighPressure Boiler Material Tubes and Pipes
