Place of Origin: | China |
Brand Name: | Torich |
Certification: | ISO 9001 |
Model Number: | JIS G3472 |
Minimum Order Quantity: | 5 tons |
---|---|
Price: | negotiable |
Packaging Details: | In bundles or in wooden boxes package |
Delivery Time: | 5-8 weeks days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000tons per year |
Technique: | Cold Drawn,ERW | Application: | Structure Pipe |
---|---|---|---|
Standard: | ASTM | Alloy Or Not: | Non-alloy |
Thickness: | 2 - 120 Mm | Section Shape: | Round |
Special Pipe: | Precision Seamless Steel Tube,cold Drawn | Secondary Or Not: | Non-secondary |
Length: | Customer's Requirement |

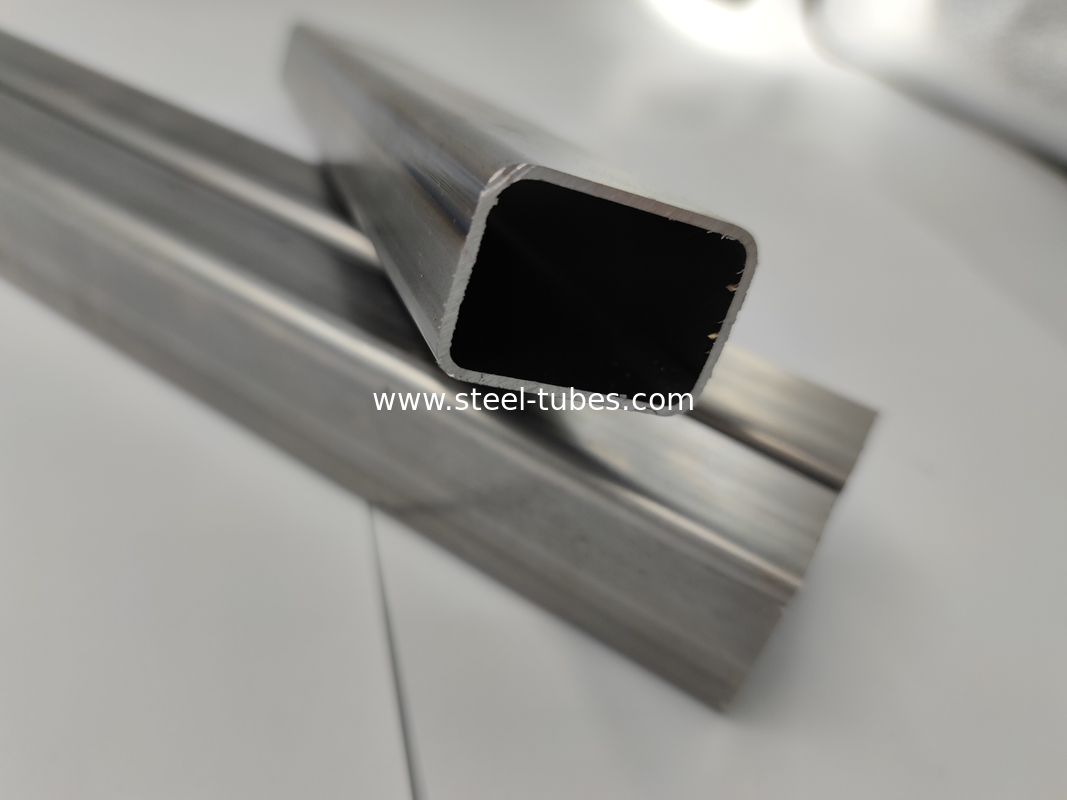

JIS G3472 STAM390G High Strength Steel Tubes For Structural And Engineering In Automitive
Brand Name: TORICH
Model Number: JIS G3452
Certification: ISO 9001 ISO14001 TS 16949
Place of Origin: China
Standard JIS G3452
Application for ordinary piping
Diameter 5-420mm
Wall thickness 0.5-50mm
Length 12m max
Grade SGP
Minimum Order Quantity: 5TONS
Price: negotiation
Payment Terms: T/T or L/C
Supply Ability: 5,000tons per year
Delivery Time: 30-60days after received your payment
Packaging Details: Packed in bundles or wooden box or upon requestscription.
Application: Resistance welding carbon steel pipe for automobile structure.
Heat treated: 1319°C - 1178°C.
CHEMICAL COMPOSITION unit (%) | ||
Steel grade | P | S |
SGP | 0.040max | 0.040max |
MECHANICAL PROPERTIES | ||
Steel grade | Tensile strength Mpa | Elongation% |
SGP | 290 min | 30min |
Dimensions weights and Demensional Tolerances | |||||||
Nominal diameter | OD(mm) | OD Tolerances | WT mm | WT Tolerances | Unit mass excluding socket kg/m | ||
A | B | Pipes to be cut in taper thread | Other pipes | ||||
6 | 1/8 | 10.5 | ±0.5mm | ±0.5mm | 2.0 |
+Not specified -12.5% |
0.419
|
8 | 1/4 | 13.8 | ±0.5mm | ±0.5mm | 2.3 | 0.652 | |
10 | 3/8 | 17.3 | ±0.5mm | ±0.5mm | 2.3 | 0.851 | |
15 | 1/2 | 21.7 | ±0.5mm | ±0.5mm | 2.8 | 1.31 | |
20 | 3/4 | 27.2 | ±0.5mm | ±0.5mm | 2.8 | 1.68 | |
25 | 1 | 34.0 | ±0.5mm | ±0.5mm | 3.2 | 2.43 | |
32 | 1 1/4 | 42.7 | ±0.5mm | ±0.5mm | 3.5 | 3.38 | |
40 | 1 1/2 | 48.6 | ±0.5mm | ±0.5mm | 3.5 | 3.89 | |
50 | 2 | 60.5 | ±0.5mm | ±1% | 3.8 | 5.31 | |
65 | 2 1/2 | 76.3 | ±0.7mm | ±1% | 4.2 | 7.47 | |
80 | 3 | 89.1 | ±0.8mm | ±1% | 4.2 | 8.79 | |
90 | 3 1/2 | 101.6 | ±0.8mm | ±1% | 4.2 | 10.1 | |
100 | 4 | 114.3 | ±0.8mm | ±1% | 4.5 | 12.2 | |
125 | 5 | 139.8 | ±0.8mm | ±1% | 4.5 | 15.0 | |
150 | 6 | 165.2 | ±0.8mm | ±1.6mm | 5.0 | 19.8 | |
175 | 7 | 190.7 | ±0.9mm | ±1.6mm | 5.3 | 24.2 | |
200 | 8 | 216.3 | ±1.0mm | ±0.8% | 5.8 | 30.1 | |
225 | 9 | 241.8 | ±1.2mm | ±0.8% | 6.2 | 36.0 | |
250 | 10 | 267.4 | ±1.3mm | ±0.8% | 6.6 | 42.4 | |
300 | 12 | 318.5 | ±1.5mm | ±0.8% | 6.9 | 53.0 | |
350 | 14 | 355.6 | - | ±0.8% | 7.9 | 67.7 | |
400 | 16 | 406.4 | - | ±0.8% | 7.9 | 77.6 | |
450 | 18 | 457.2 | - | ±0.8% | 7.9 | 87.5 | |
500 | 20 | 508.0 | - | ±0.8% | 7.9 | 97.4 |
JIS G 3452 Carbon steel pipes for ordinary piping
Black pipe without zinc coating
Galvanized pipe with zinc coating
Produce method:ERW
Delivery condition:ERW
Steel Grade:SGP
Relevant standard :KS D 3507 ASTM A 53 API 5L DIN 2440 DIN2441 BS 1387 BS 3601 JIS B 0203 JIS B 0253 JIS B 2301
