Home ProductsPrecision Seamless Steel Tubes

Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing

Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing

    • Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing
    • Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing
    • Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing
    • Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing
  • Carbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: IS09001 ISO14001 TS16949
    Model Number: ISO8535

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 tons
    Price: Negotiation
    Packaging Details: 60000tons per year
    Delivery Time: 5-8week days
    Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 60000tons per year
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Size: 5-400mm
    End: End Origin: China
    Length: As Per Requests Application: Mechaning Pipes

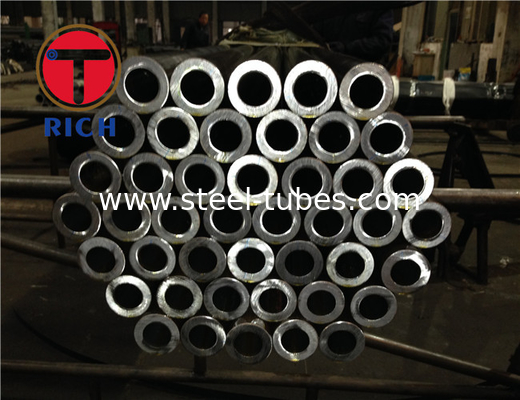

    Carbon Steel AISI 1045 Precision Ground Shafting Precision Ground Tubing















    andard & Material

    Carbon Steel ASTM A519 Standard MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518
    JIS G3445 Standard STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A
    JIS G3473 Standard STC370, STC440, STC510A, STC510, STC540, STC590A, STC590B
    DIN 2391 Standard St 35, St45, St52
    EN 10297-1 Standard E235, E275, E315, E355, E470
    EN 10305-1 Standard E215, E235, E355
    EN 10305-4 Standard E215, E235, E355
    BS 6323-3 Standard HFS 3, HFS 4, HFS 5, HFS 8
    NF A49-311 TU 37-b, TU 52-b, TU 56-b, TU XC35
    Alloy Steel ASTM A519 Standard 1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130
    JIS G3429 Standard STH11, 12 STH21, 122 STH31
    JIS G3441 Standard SCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK





    Size

      Size Range Tolerance
    OD 10-80mm -0.035 -- +0.045mm
    ID 5-74mm ±0.035mm
    WT 1-14mm depends on sizes
    Length random or fixed length +0-3.5mm
    Straightness 0.15:1000, 0.4:1000, 0.5:1000 1:1000 or customized
    Surface Roughness Ra 0.02—0.4μm



    Final supply conditions
    Designation Symbol Description
    Cold finished (hard) BK Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.
    Cold finished (soft) BKW The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding).
    Cold finished and stress-relieved BKS Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
    Annealed GBK The last cold forming process is followed by annealing in a controlled atmosphere.
    Normalized NBK The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.





    Carbon steel AISI 1045 Precision Ground Shafting Precision Ground TubingCarbon steel AISI 1045 Precision Ground Shafting Precision Ground TubingCarbon steel AISI 1045 Precision Ground Shafting Precision Ground Tubing
