    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: TS16949,ISO9001
    Model Number: 1020

    Payment & Shipping Terms:

    Price: negotiation
    Packaging Details: In pallets
    Delivery Time: 5-8 week days
    Payment Terms: L/C, T/T
    Supply Ability: 5000tons per year
    Contact Now
    Detailed Product Description

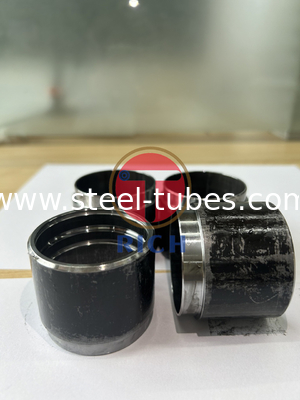

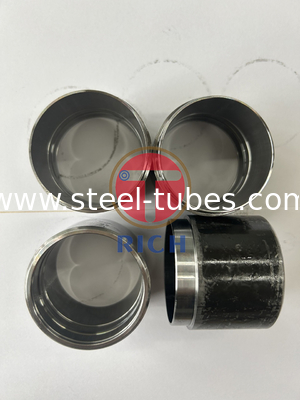

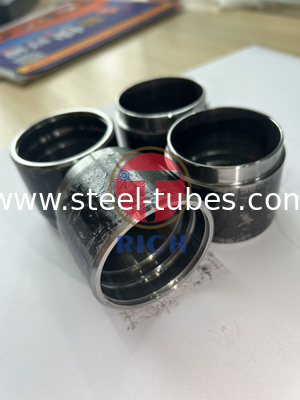

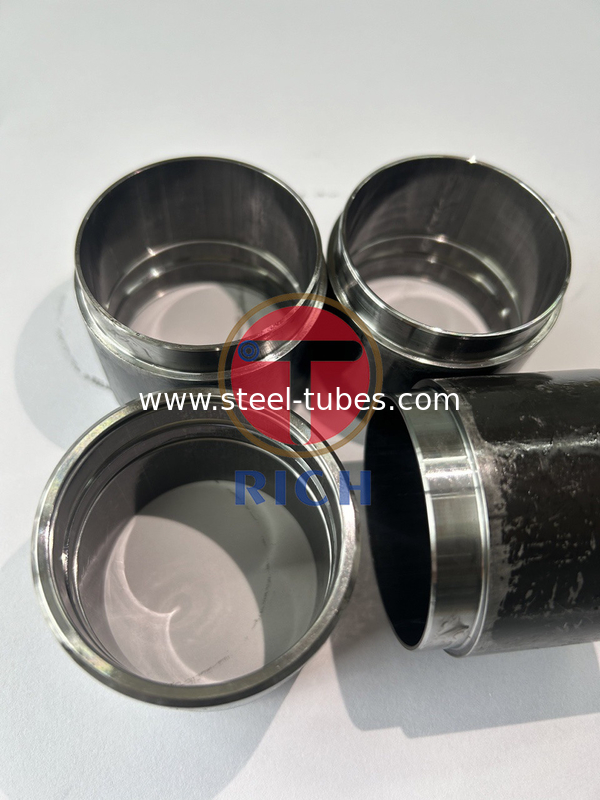

    Machinery Parts Steel Tubes 1020 Tube Sleeve Connection



    TORICH is a professional Machinery Parts Steel Tubes 1020 Tube Sleeve Connection manufacturer of

    Precision Seamless steel tubes ,which is equipped with 20 lines of pipe machine.Steel tubes used for

    machinery parts are usually produced by seamless cold drawing or cold rolling welded steel tube, DOM steel

    tubes,and Seamless ERW steel tubes .Seamless cold drawn steel tubes, Use material 1010,1020,Q235,Q345B etc.

    steel tubes is usually based on technical standard A513-5,A519 ect .



    Machinery parts steel tubes produce by CNC machining, commonly used in the production of automotive , mechanical equipment.





    Steel Grade and Chemical Compositions:
    Steel C Mn P S Si Cr Mo
    Grade max   max max max min
    1008 0.10 0.30-0.50 0.040 0.050
    1010 0.08-0.13 0.30-0.60 0.040 0.050
    1018 0.15-0.20 0.60-0.90 0.040 0.050
    1020 0.18-0.23 0.30-0.60 0.040 0.050
    1026 0.22-0.28 0.60-0.90 0.040 0.050
    1035 0.32-0.38 0.60-0.90 0.040 0.050
    1045 0.43-0.50 0.60-0.90 0.040 0.050
    4130 0.28-0.33 0.40-0.60 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25
    4140 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.80-1.10 0.15-0.25



    Grade condition Ultimat Yield Elongation Rockwell
        Strength Strength   Hardness
        ksi Mpa ksi Mpa % B Scale
    1020 HR 50 345 32 221 25 55
      CW 70 483 60 414 5 75
      SR 65 448 50 345 10 72
      A 48 331 28 193 30 50
      N 55 379 34 234 22 60
    1025 HR 55 379 35 241 25 60
      CW 75 517 65 448 5 80
      SR 70 483 55 379 8 75
      A 53 365 30 207 25 57
      N 55 379 36 248 22 60
    1035 HR 65 448 40 276 20 72
      CW 85 586 75 517 5 88
      SR 75 517 65 448 8 80
      A 60 414 33 228 25 67
      N 65 448 40 276 20 72
    1045 HR 75 517 45 310 15 80
      CW 90 621 80 552 5 90
      SR 80 552 70 483 8 85
      A 65 448 35 241 20 72
      N 75 517 48 331 15 80
    4130 HR 90 621 70 483 20 89
      SR 105 724 85 586 10 95
      A 75 517 55 379 30 81
      N 90 621 60 414 20 89
    4140 HR 120 855 90 310 15 100
      SR 120 855 100 689 10 100
      A 80 552 60 414 25 85
      N 120 855 90 621 20 100


    Deliver condition:

    1. A.W.H.R. "as welded" from hot-rolled steel
    2. A.W.C.R. "as welded" from cold-rolled steel
    3. S.D.C.R. "sink-drawn", cold-rolled steel
    5. M.D. mandrel drawn
    6. S.S.I.D. special smooth inside diameter

    Please specify the delivery condition and heat treatment requirement when sending the enquiry.
