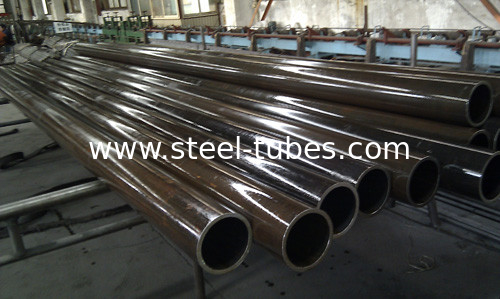

Seamless Steel Pipes EN10216-1

Seamless Steel Pipes EN10216-1

    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
    • Seamless Steel Pipes EN10216-1
  • Seamless Steel Pipes EN10216-1

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001, ISO14001, TS16949
    Model Number: EN10297-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 TONS
    Price: NEGOTIATION
    Packaging Details: IN BUNDLES
    Delivery Time: 45-60 DAYS
    Payment Terms: T/T L/C
    Supply Ability: 60000 TONS PER YEAR
    Contact Now
    Detailed Product Description
    Material: Steel

    Standard: EN10216-1 Seamless steel tubes for pressure purposes-Technical delivery conditions

     Non-alloy steel tubes with specified room temperature properties



    Applications: for manufacturing pipelines, vessel. Euqipment.pipt fittings and steel structure                                                    Auto shock absorber innder cylinder

    Size range: O.D.:6-168mm     W.T.:1-30mm      L:max12000mm



    Chemical composition

    Steel grade C Si Mn P S Cr Mo
    Steel name Steel number max max max max max max max
    P195TR1 1.0107  0.13 0.35 0.70 0.025 0.020  0.30 0.08
    P195TR2 1.0108  0.13 0.35 0.70 0.025 0.020  0.30 0.08
    P235TR1 1.0254  0.16 0.35 1.20 0.025 0.020  0.30 0.08
    P235TR2 1.0255 0.16 0.35 1.20 0.025 0.020  0.30 0.08
    P265TR1 1.0258 0.20 0.40 1.40 0.025 0.020  0.30 0.08
    P265TR2 1.0259 0.20 0.40 1.40 0.025 0.020  0.30 0.08

    Note: Special steel grade is also available, according to customer request.

    Mechanical properties

    Steel Grade Tensile properties Tensil Elongation
    Steel name Steel number Upper yield strength Strength A min.%
       ReH min for Wall Thickness Rm
    T mm
    T≤16 16<T≤40 40<T≤60
    Mpa Mpa Mpa Mpa l t
    P195TR1 1.0107  195  185 175 320-440 27 25
    P195TR2 1.0108  195  185 175 320-440 27 25
    P235TR1 1.0254  235  225 215 360-500 25 23
    P235TR2 1.0255 235  225 215 360-500 25 23
    P265TR1 1.0258 265  255  245  410-570 21 19
    P265TR2 1.0259 265  255  245  410-570 21 19


    buy  Seamless steel tubes for pressure purposes technical delivery conditions non alloy steel tubes with specified room temperature properties  manufacturer      Seamless Steel Pipes EN10216-1 cheap Seamless steel tubes for pressure purposes technical delivery conditions non alloy steel tubes with specified room temperature properties  suppliers        buy  Seamless steel tubes for pressure purposes technical delivery conditions non alloy steel tubes with specified room temperature properties  manufacturer
