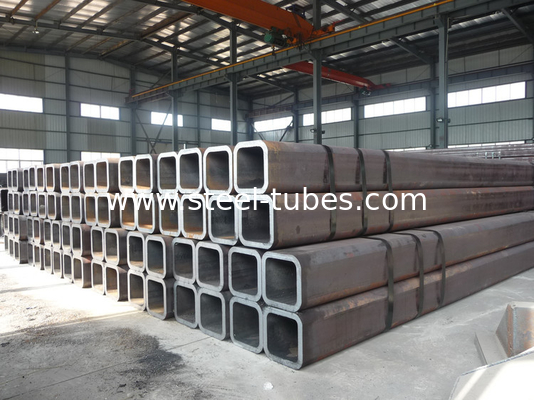

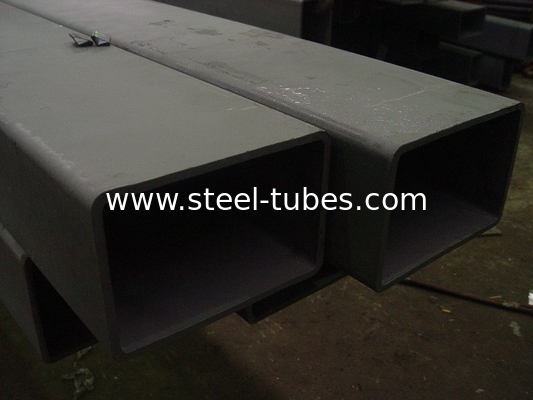

Seamless Steel Rectangle Tubing for structure application

Seamless Steel Rectangle Tubing for structure application

    • Seamless Steel Rectangle Tubing for structure application
    • Seamless Steel Rectangle Tubing for structure application
    • Seamless Steel Rectangle Tubing for structure application
    • Seamless Steel Rectangle Tubing for structure application
    • Seamless Steel Rectangle Tubing for structure application
    • Seamless Steel Rectangle Tubing for structure application
  • Seamless Steel Rectangle Tubing for structure application

    Product Details:

    Place of Origin: China
    Brand Name: Torich
    Certification: ISO9001,ISO14001,TS16949
    Model Number: Carbon Steel Grade

    Payment & Shipping Terms:

    Price: 1000USD per ton
    Packaging Details: IN BUNDLES
    Delivery Time: 30-60 DAYS
    Payment Terms: T/T,L/C
    Supply Ability: 50000 TONS PER YEAR
    Min Order: 5 TONS
    Contact Now
    Detailed Product Description
    Grade: 1010 1020 Dimensions: 30-350mm
    Type: Heavy Application: Structural Roofing
    Standard: AISI|ASTM|BS|DIN|GB|JIS

    Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Shapes

    Standard: ASTM A500  Steel Rectangle Tubing


    Size range:

    Square tubes  O.D. :20-20 to 500-500    W.T.:1-24mm      L:max12000mm

            Rectangle tubes  O.D. :20-30 to 400-600    W.T.:1-24mm      L:max12000mm

    Applications: for construction of bridges, and buildings, and for general strcutrual purposes



    Chemical Reuirement
    Element GradeA, b and D Grade C
      Heat Analysis Product Analysis Heat Analysis Product Analysis
    Carbon, max 0.26 0.3 0.23 0.27
    Manganese,max 1.35 1.40  1.35 1.4
    Phosphorus,max 0.035 0.045 0.035 0.045
    Sulfur,max 0.035 0.045 0.035 0.045
    Copper,min 0.2 0.18 0.2 0.18



    Tensil requirements
    Round Structural Tubing
      GradeA Grade B Grade C Grade D
    Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58(400)
    Yield strength,min,psi(Mpa) 33(230) 42(290) 46(315) 36(250)
    Elongation in 2 in.(50mm) min,% 25 23 21 23
    Shaped Structural Tubing
      GradeA Grade B Grade C Grade D
    Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58
    Yield strength,min,psi(Mpa) 39(270) 46(315) 50(315) 36(250)
    Elongation in 2 in.(50mm) min,% 25 23 21 23



      cheap Steel Rectangle Tubing
